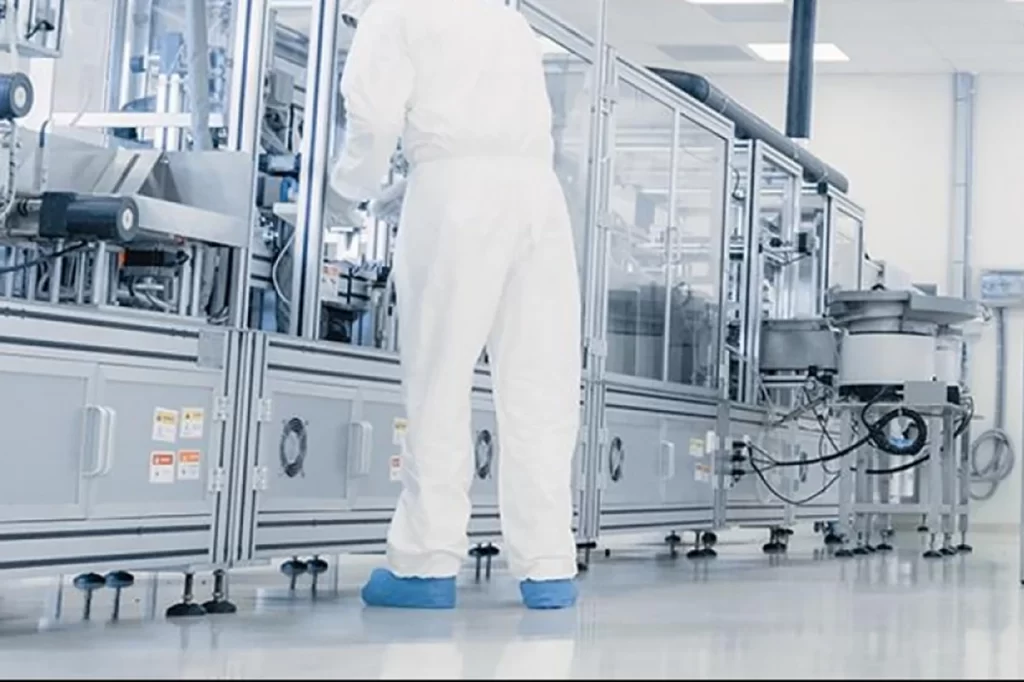

What is a Class D cleanroom?

A cleanroom class D is a controlled particle level room designed for applications with a moderate level of contamination. These rooms are used for the production, testing, or storage of products or materials that require a moderate level of contamination.

A cleanroom class D has a particle level of 0.5 microns or more per cubic foot of air. This level of contamination is higher than that of cleanrooms of higher classes, such as class A or class B.

Features of Cleanroom Class D

Cleanrooms class D typically have the following features:

• HVAC system with HEPA or ULPA filters
• Walls, ceiling, and floor with antimicrobial coatings
• Low-contamination design for doors and other equipment
• Contamination control protocols for staff and visitors

Cleanrooms class D should be regularly inspected and maintained by a qualified engineer or technician to ensure that contamination control conditions are in compliance with requirements.

Applications of Class D Cleanrooms

Some of the common applications of Class D cleanrooms include:

• Drug and medical product manufacturing

Class D cleanrooms are used to manufacture drugs and medical products that must be free of contamination. For example, Class D cleanrooms are used to manufacture vaccines, antibiotics, and other sensitive drugs.

• Food and food product testing

Class D cleanrooms are used to test food and food products that must be free of contamination. For example, Class D cleanrooms are used to test dairy products, meat, and other sensitive food products.

• Electronic circuit manufacturing

Class D cleanrooms are used to manufacture electronic circuits that must be free of contamination. For example, Class D cleanrooms are used to manufacture computer chips, integrated circuits, and other sensitive electronic circuits.

• Semiconductor testing

Class D cleanrooms are used to test semiconductors that must be free of contamination. For example, Class D cleanrooms are used to test computer chips, integrated circuits, and other sensitive semiconductors.

In addition, Class D cleanrooms may be used for other applications such as cosmetic production, sanitary product testing, and medical equipment testing.

Here are some general points about the applications of Class D cleanrooms:

• Class D cleanrooms are designed for applications with a moderate level of contamination.
• The particulate contamination level of a Class D cleanroom is 0.5 micrometers or more per cubic foot of air.
• Class D cleanrooms typically have features such as HVAC systems with HEPA or ULPA filters, walls, ceilings, and floors with antimicrobial coatings, low-contamination design doors and other equipment, and contamination control protocols for personnel and visitors.
• Class D cleanrooms must be regularly inspected and maintained by a qualified engineer or technician to ensure that contamination control conditions are in compliance with requirements.

Design and Construction of Class D Cleanrooms

The design and construction of class D cleanrooms is a complex process that requires sufficient knowledge and experience. This process typically includes the following steps:

Design Phase: In this phase, the user’s needs and the cleanroom requirements are specified. Also, the technical specifications of the cleanroom, such as dimensions, layout, HVAC system, and other equipment, are determined. Construction Phase: In this phase, the cleanroom is built according to the designed technical specifications. This phase includes the construction of walls, ceiling, floor, doors, and other cleanroom equipment. Equipment Installation Phase: In this phase, cleanroom equipment, such as HVAC system, filters, and other equipment, are installed. Testing and Commissioning Phase: In this phase, the cleanroom is tested to ensure that the contamination control conditions are in compliance with the requirements.

Factors to Consider in the Design and Construction of Class D Cleanrooms

In the design and construction of class D cleanrooms, various factors must be considered. Some of these factors include:

• The type of products or materials that are produced, tested, or stored in the cleanroom.
• The required contamination level for these products or materials.
• The size and layout of the cleanroom.
• The required HVAC system.
• The required contamination control equipment.

Based on these factors, the technical specifications of the cleanroom are determined and the cleanroom is built according to these specifications.

read more | Cleanroom Design

Benefits of Designing and Building Class D Cleanrooms

Class D cleanrooms have numerous benefits. Some of these benefits include:

• Reduced contamination: Class D cleanrooms help to reduce contamination. This is essential for the production, testing, or storage of products or materials that require a low contamination level.
• Improved product quality: Class D cleanrooms help to improve product quality. This is due to the reduction of contamination and its impact on products.
• Increased safety: Class D cleanrooms help to increase safety. This is due to the reduction of contamination and its impact on human health.

read more | Air-cooled chillers

Conclusion

In summary, the design and construction of class D cleanrooms is a complex but essential process. This process should be carried out by a qualified engineer or technician to ensure that the cleanroom is designed in accordance with the requirements and performs properly.
